Wimbledon Project Scope
Commission a new GE/Alstom 400KV 16 Bay GIS T155-3 Substation including:-
- Local Control Cubicle (LCC)
- Circuit Breakers’s, Disconnectors, Earth Switches, High Speed Earth Switches
- Current Transformer’s and Voltage Transformer’s
- Alstom SF6 Gas Monitoring System BWatch
- Alstom Point on Wave RPH3 relay
- SMIT Interbus 400/275KV Transformer
- SMIT 400KV Shunt Reactor
- 2 Cable Feeder Protections Siemens with Double Unit and Distance Backup
- Siemens Numerical Busbar Protection 16 Bays
- Siemens Substation Control System
- Ward Power Diesel Generator
- Charnvel LVAC 415V Board
- Dales 100VDC system including Charger and Batteries

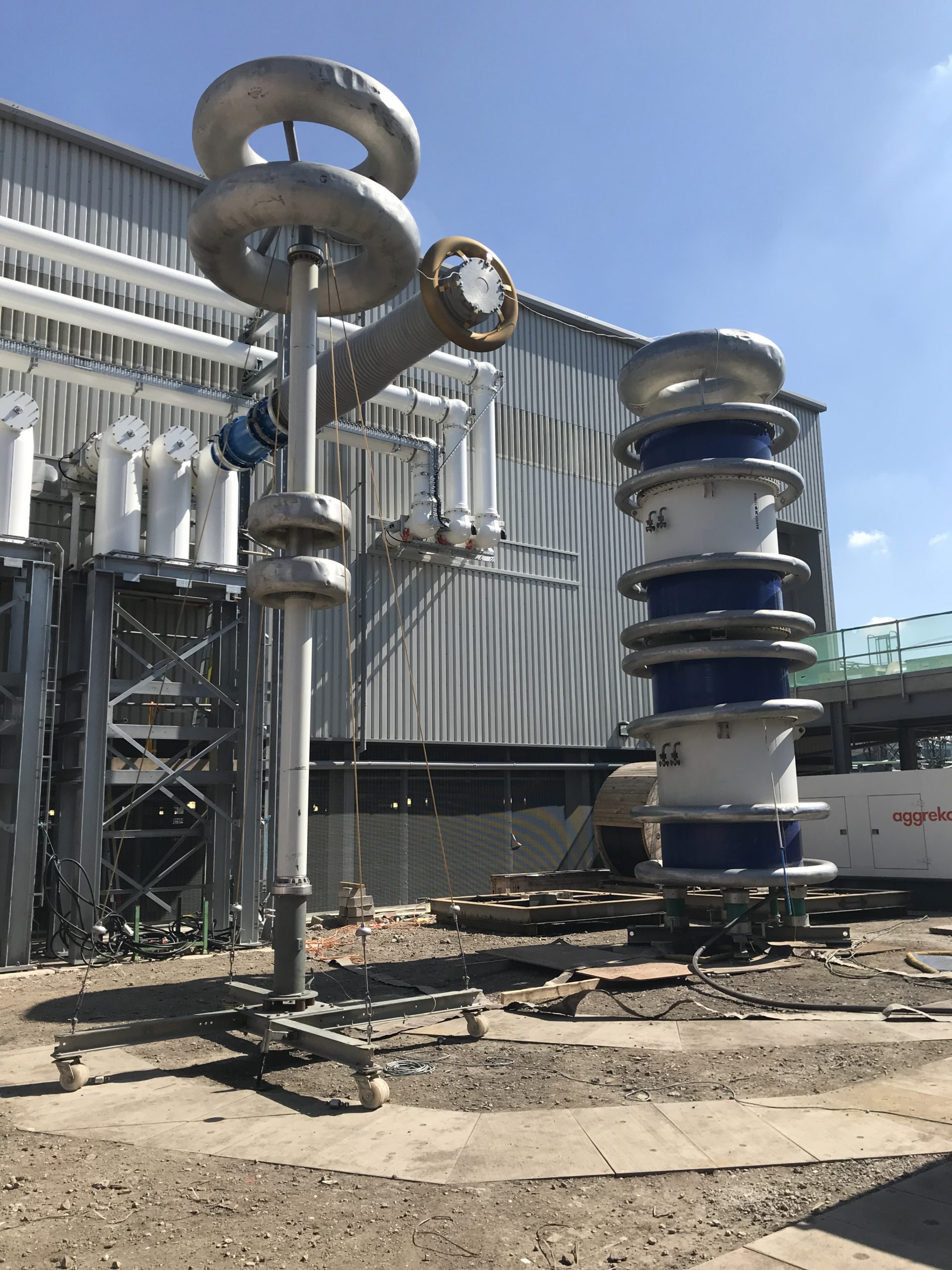

- GIS HV Testing Acceptance
- Cable HV Testing Acceptance
